Model

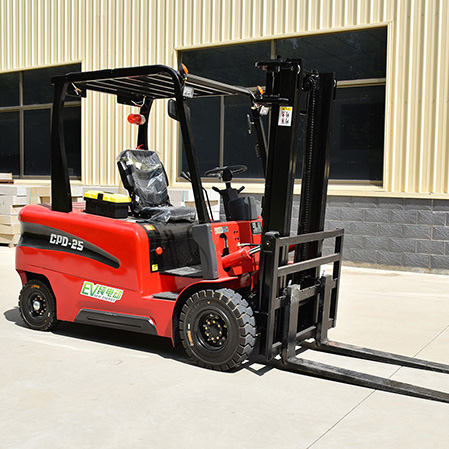

CPD-25

Size

2650X1310X2150mm

Lift Height

3 meters(customizable height)

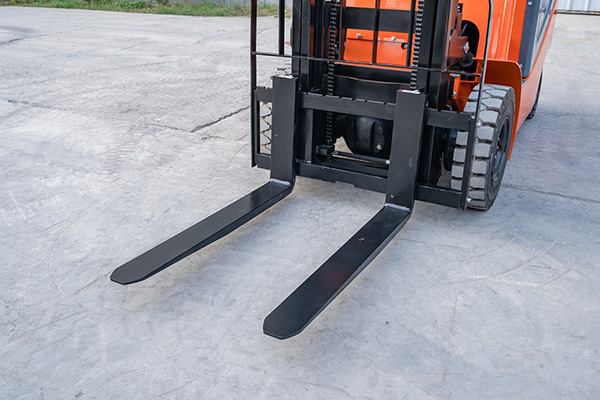

Forklift Forks

One piece forging and thickening fork (multiple sizes available) National standard hanging fork distance

Forklift Paint

Automotive grade baking paint; Moisture proof and rust proof primer, two coats of topcoat, durable and colorfast

POWER SYSTEM

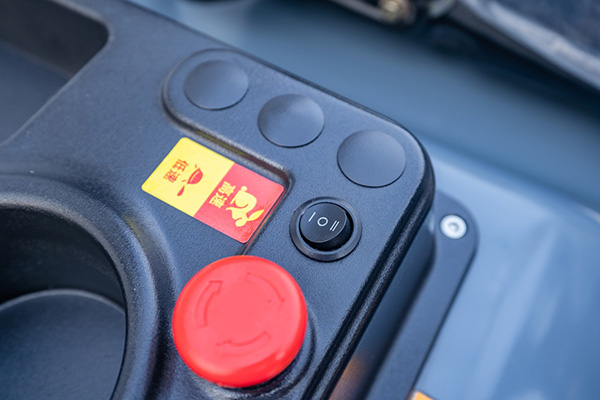

The entire series comes standard with a one key adjustment function for high and low speeds of vehicles

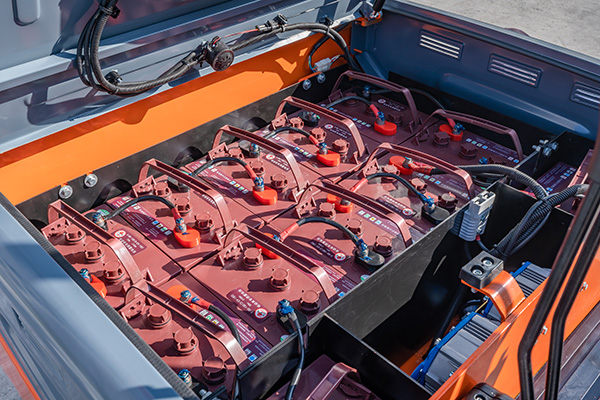

Battery

10Chaowei Maintenance-free battery(60V/140Ah)

Charging time

6-8 hours

Continuous working hours

8-12 hours

Drive Motor

National standard 9KW full AC brushless motor

Lift Motor

National standard 7.5KW full AC brushless motor

The motor is assembled with all copper wires inside,with no noise,fast heat dissipation,fully enclosed internal structure,sustainable operation,with gentle slope and steep descent function,and strong power

Controller

Fully imported chip dual controller; Dual independent controllers with built-in fault alarm and independent heat dissipation

CORE EOUIPMENT

High temperature protection for the entire vehicle wiring harness,dual layer protection for hydraulic component joints and H-heads

Front Axle

Heavy duty 275 cast steel front axle

Rear Axle

Thickened forklift specialized suspension integrated rear axle

Forklift Truck Door Frame

National standard 12H type forklift dedicated steel door frame

Chain

7-piece bite chain

Hydro-cylinder

Dual hydraulic cylinder; Adopting imported double -layer oil seals,the inner wall of the cylinder is processed with a smooth surface for secondary processing, without oil leakage or seepage

Oil Pipe

Double layer steel wire high-pressure resistant oil pipe, external wear-resistant protective cover

CONTRAL SYSTEM

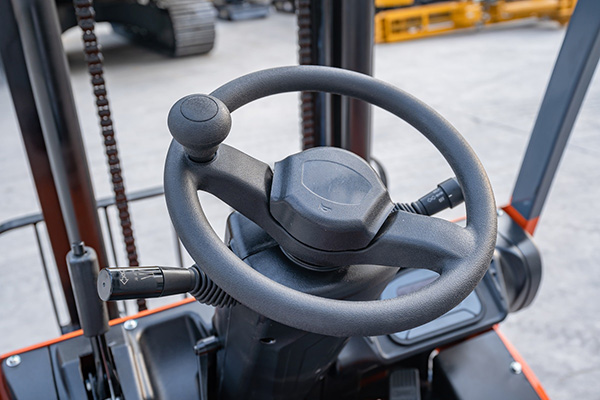

Steering System

Hydraulic Power Steering

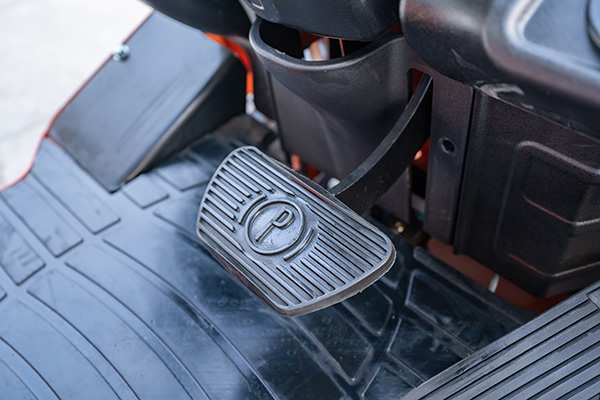

Braking System

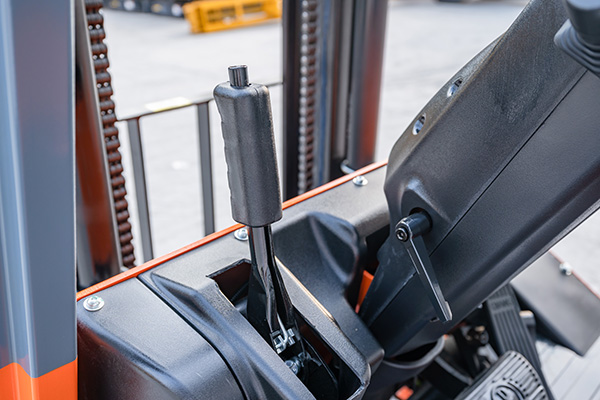

Oil brake,handbrake

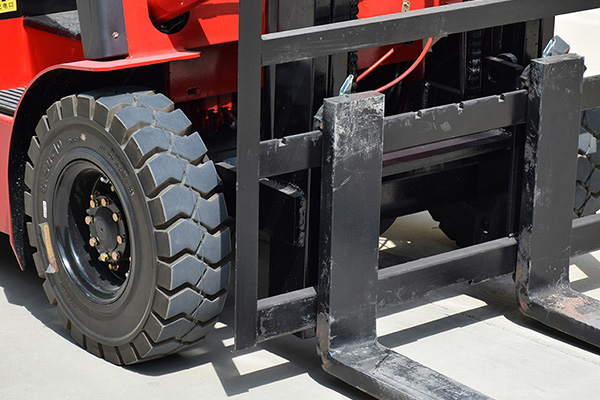

Tire

Front wheel 650-10(solid tire); Rear wheel 500-8( solid tire)

Lighting fixtures, left and right turn signals, brake lights, driving lights, electric horns, etc

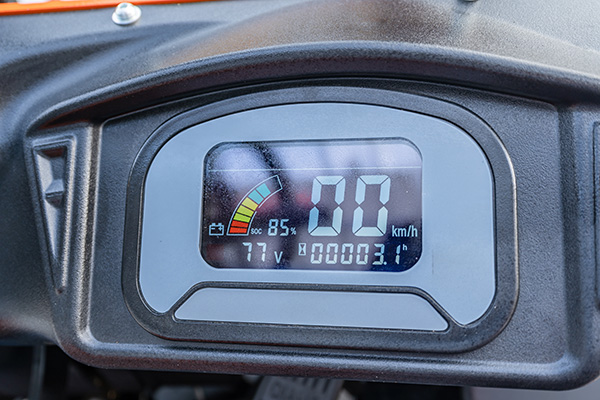

Multi functional LCD instrument panel, password swipe start, automatic power-off upon leaving the seat

220V intelligent charger with intelligent voltage regulation and automatic power-off when fully charged
