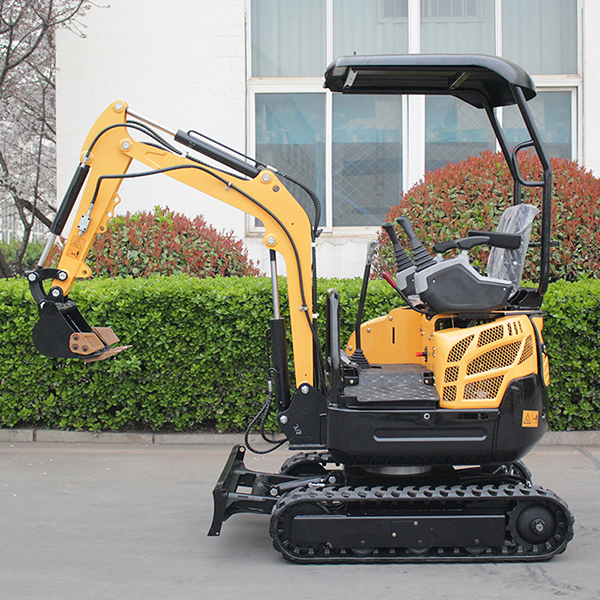

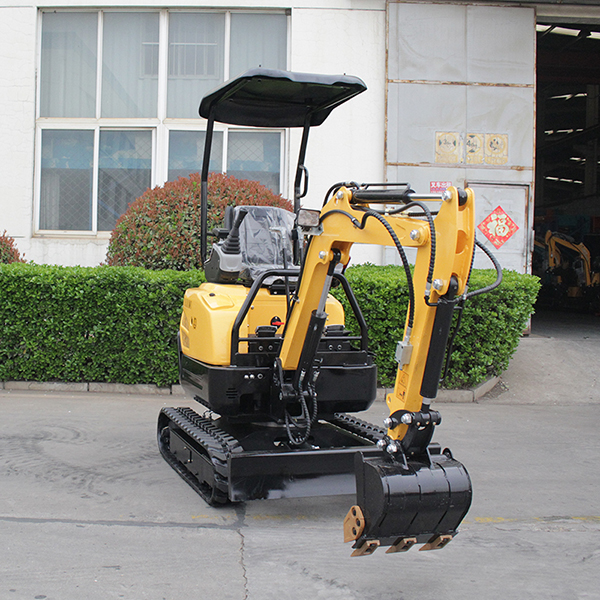

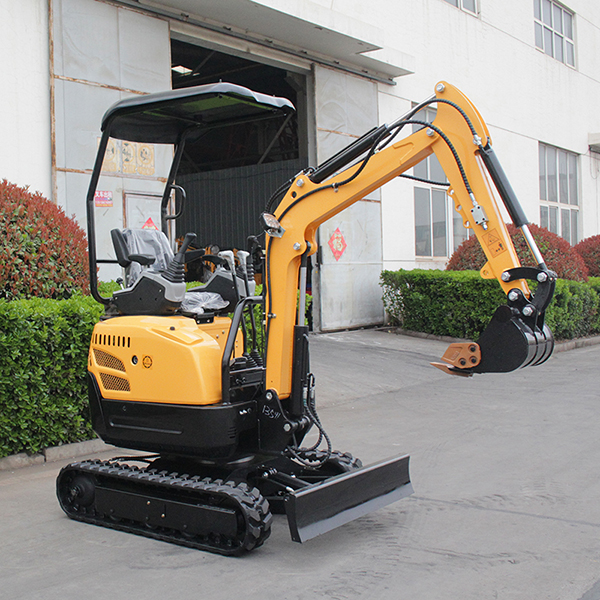

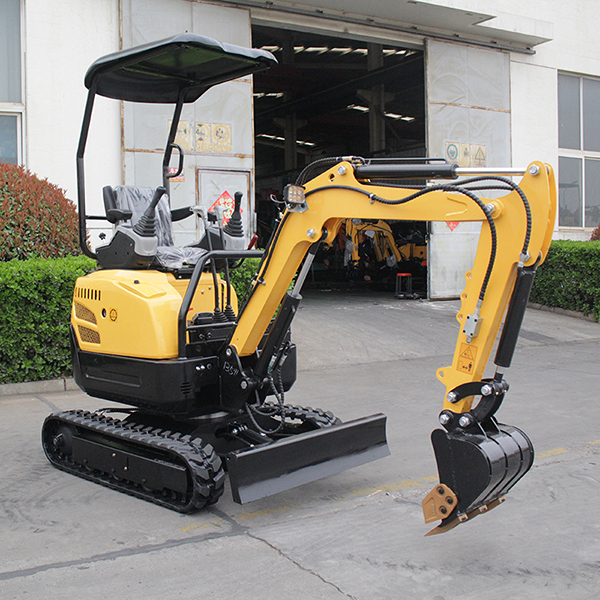

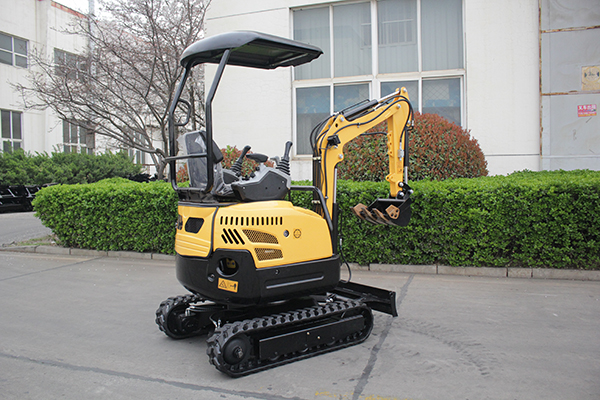

Product details
| Model | XG-13 |
| Vehicle weight | 1000kg |
| Overall dimensions | 2200*1100*2200mm |
| track width | 180mm |
| Track grounding length | 1030mm |
| Ground clearance of chassis | 385mm |
| Bucket capacity | 0.025m² |
| gradability | 30° |
| Fuel tank capacity | 5L |
| Hydraulic oil tank capacity | 12L |
| Hydraulic flow rate | 18L/Min/27L/Min |
| work pressure | 16Mpa |
| engine | huapurui 192F |
| engine power | 14 horsepower |
| Euro V&EPA4 engines are optional | kepu192、bailitong |
| Maximum excavation height | 2550mm |
| Maximum dumping height | 1710mm |
| Maximum Digging Depth | 1740mm |
| Maximum digging radius | 3100mm |
| radius of rotation | 1635mm |
| configuration | Load sensitive pump valve, dual rotation motor |
| Standard two legged ceiling | |
| Dual pump load sensitivity | |
| Track: 180 * 37 * 41 | |
| Hydraulic pilot operation |
The above parameters are subject to change without prior notice! For the latest information or product customization needs, please contact customer service at the following email address: txgx888@gmail.com
