Contact Now◎ Electric forklifts are powered by electricity.
◎ The noise level of the electric forklift is relatively low.
◎ The operation of electric forklifts is relatively simple.
◎ The frequency of maintenance and servicing is also relatively low.
◎ It is small in size and has a small turning radius.
◎ It enhances operational safety.
|
Model |
CPD-10 |
|
Size |
2000×1200×2100mm |
|
Lift Height |
3 meters(customizable height) |
|
Forklift Forks |
One piece forging and thickening fork (multiple sizes available) National standard hanging fork distance |
|
Forklift Paint |
Automotive grade baking paint; Moisture proof and rust proof primer, two coats of topcoat, durable and colorfast |
|
|
POWER SYSTEM |
|
The entire series comes standard with a one key adjustment function for high and low speeds of vehicles |
|
|

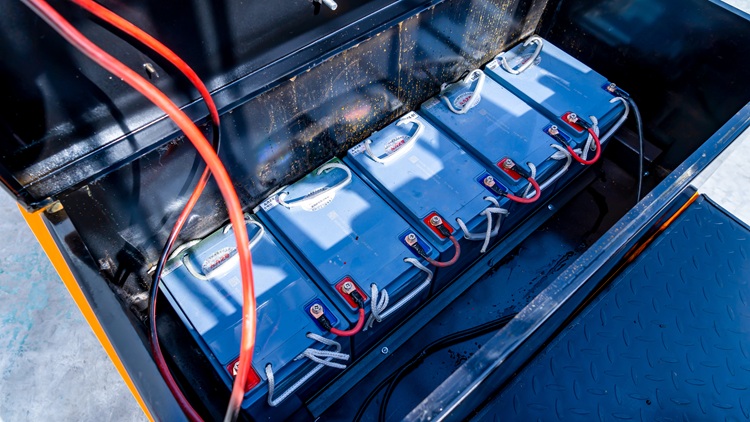

Battery |
5Chaowei Maintenance-free battery(60V/70Ah) |
|
Charging time |
6-8 hours |
|
Continuous working hours |
8-12 hours |
|
Drive Motor |
National standard 3KW full AC brushless motor |
|
Lift Motor |
National standard 3KW full AC brushless motor |
|
The motor is assembled with all copper wires inside,with no noise,fast heat dissipation,fully enclosed internal structure,sustainable operation,with gentle slope and steep descent function,and strong power |
|
|
Controller |
Fully imported chip dual controller; Dual independent controllers with built-in fault alarm and independent heat dissipation |
|
|
CORE EOUIPMENT |
|
High temperature protection for the entire vehicle wiring harness,dual layer protection for hydraulic component joints and H-heads |
|
|

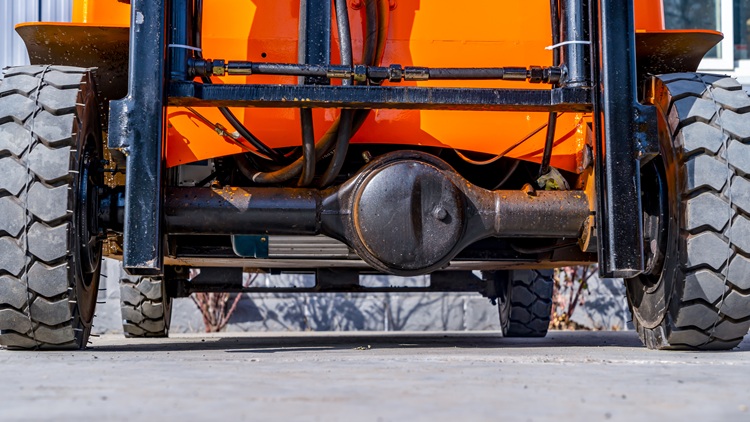

Front Axle |
Heavy duty cast steel front axle |
|
Rear Axle |
Thickened forklift specialized suspension integrated rear axle |
|
Forklift Truck Door Frame |
National standard C-shaped steel double hydraulic forklift dedicated door frame |
|
Chain |
5-piece bite chain |
|
Hydro-cylinder |
Dual hydraulic cylinder; Adopting imported double -layer oil seals,the inner wall of the cylinder is processed with a smooth surface for secondary processing, without oil leakage or seepage |
|
Oil Pipe |
Double layer steel wire high-pressure resistant oil pipe, external wear-resistant protective cover |
|
|
CONTRAL SYSTEM |
|
Steering System |
Hydraulic Power Steering |
|
Braking System |
Oil brake,handbrake |
|
Tire |
Front wheel 500-8(solid tire); Rear wheel 400-8( solid tire) |
|
Lighting fixtures, left and right turn signals, brake lights, driving lights, electric horns, etc |
|
|

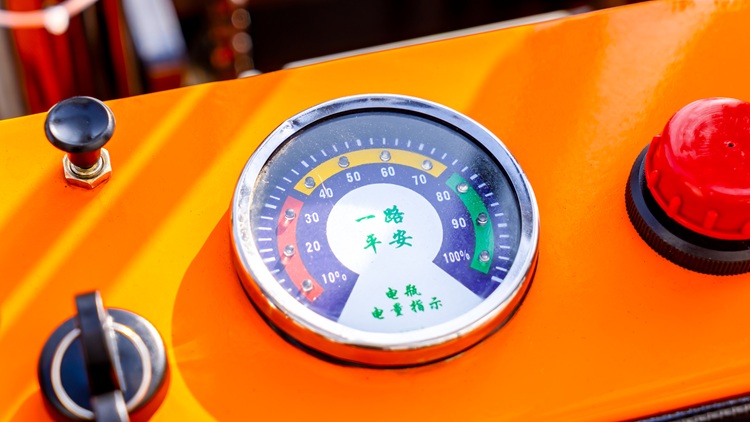

Multi functional LCD instrument panel, password swipe start, automatic power-off upon leaving the seat |
|
|
220V intelligent charger with intelligent voltage regulation and automatic power-off when fully charged |
|
