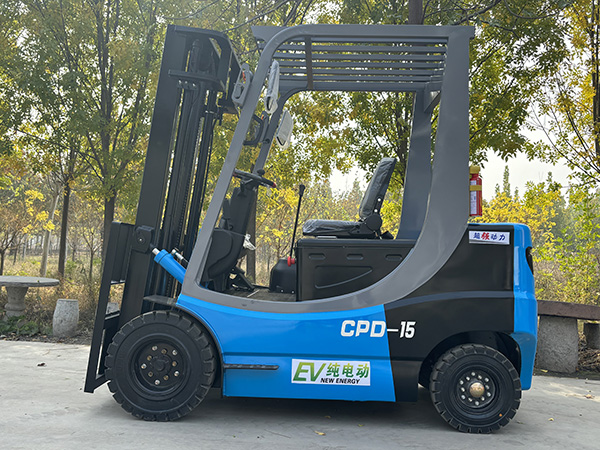

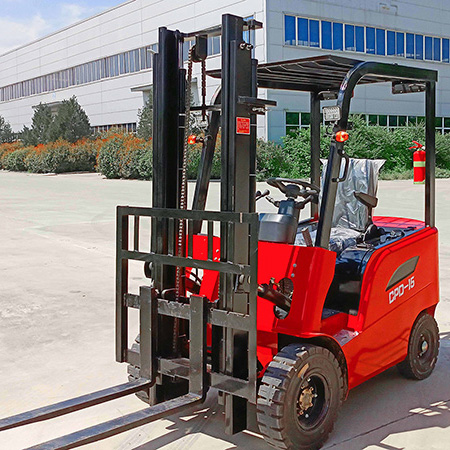

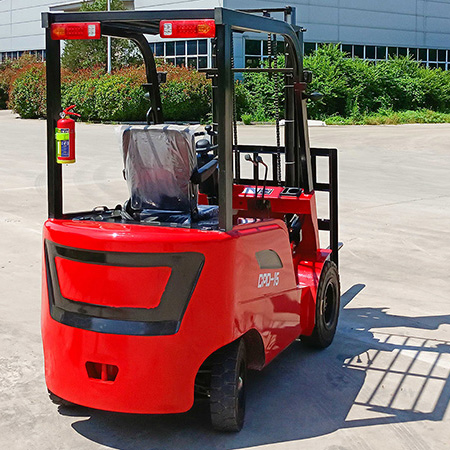

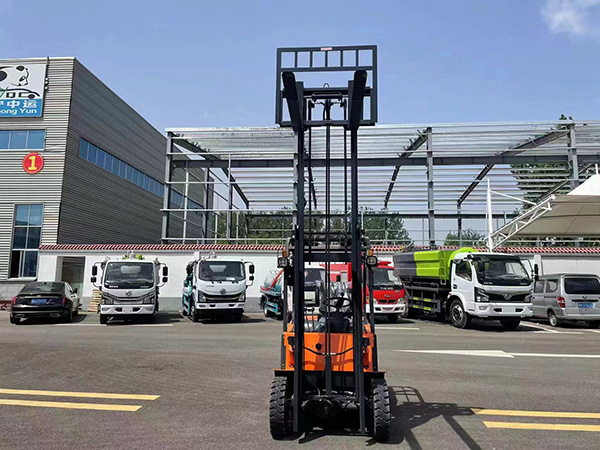

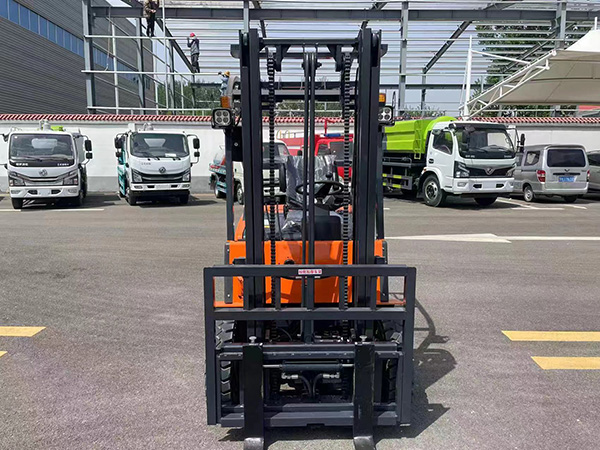

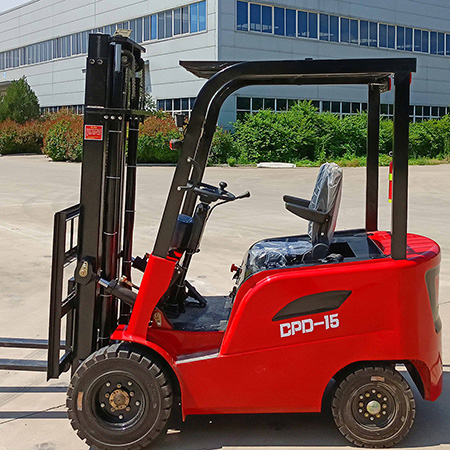

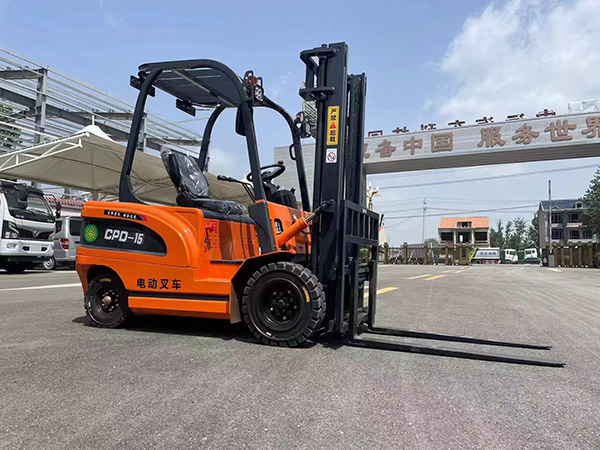

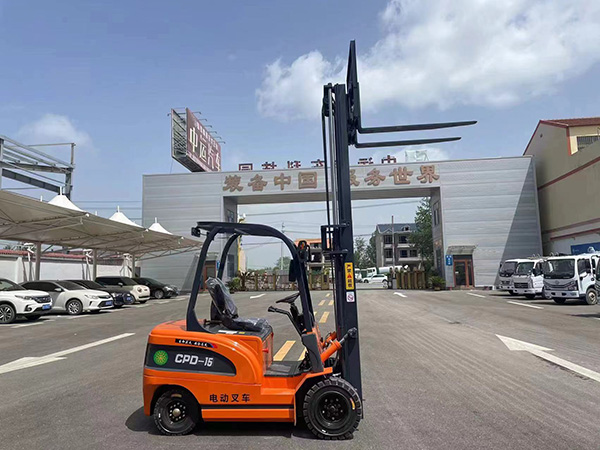

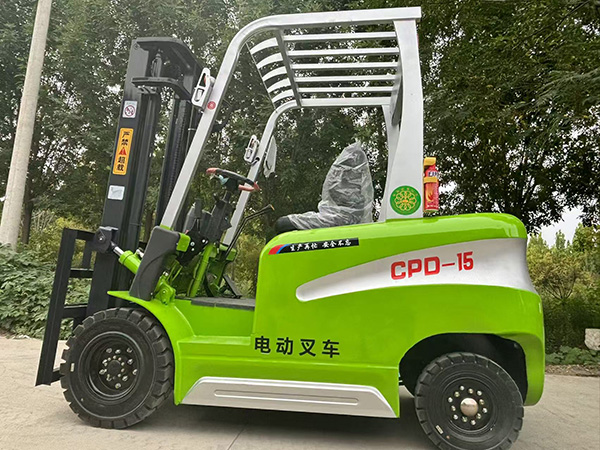

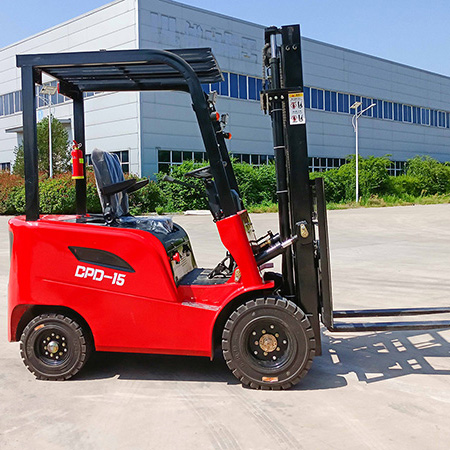

Contact Now◎ Electric forklifts are powered by electricity.
◎ The noise level of the electric forklift is relatively low.
◎ The operation of electric forklifts is relatively simple.
◎ The frequency of maintenance and servicing is also relatively low.
◎ It is small in size and has a smallturning radius.
◎ It enhances operational safety.
|
Rated lifting capacity(kg) |
1500 |
|
Load center distance(mm) |
400 |
|
With fork(mm) |
3370 |
|
Without fork(mm) |
2300 |
|
Full width(mm) |
1200 |
|
No lifting of the mast height(mm) |
2100 |
|
Height of the roof guard(mm) |
2100 |
|
Maximum height during operation(m) |
3-6 |
|
Distance from the seat surface to the front(mm) |
970 |
|
Front (mm) |
1080 |
|
Suspension travel(mm) |
327 |
|
Rear suspension travel(mm) |
313 |
|
Front wheel track(mm) |
840 |
|
Rear wheel track(mm) |
741 |
|
Minimum ground clearance(mm) |
150 |
|
Maximum lifting height(m) |
3-6 |
|
Lift lever adjustment range(mm) |
1040 |
|
Minimum turning radius (outer side)(mm) |
2185 |
|
Minimum right-angle passage width(mm) |
3850 |
|
Tire size (front)(mm) |
650-10 |
|
Tire size (rear)(mm) |
500-8 |
|
Lead-acid battery voltage/capacity(v/ah) |
60V/70 |
|
Drive motor power(kw) |
3 |
|
Oil pump motor power(kw) |
3 |
