Product details
| Model | XG-17 |
| Vehicle weight | 1700kg |
| Overall dimensions | 2400*1100*2200mm |
| track width | 180mm |
| Track grounding length | 1030mm |
| Ground clearance of chassis | 385mm |
| Bucket capacity | 0.03m³ |
| gradability | 40 |
| Fuel tank capacity | 10L |
| Hydraulic oil tank capacity | 12L |
| Hydraulic flow rate | 36L/Min |
| work pressure | 16Mpa |
| engine | changchai390 |
| engine power | 30 horsepower |
| Maximum excavation height | 2550mm |
| Maximum dumping height | 1900mm |
| Maximum Digging Depth | 1950mm |
| Maximum digging radius | 3031mm |
| radius of rotation | 1550mm |
| configuration | rubber track |

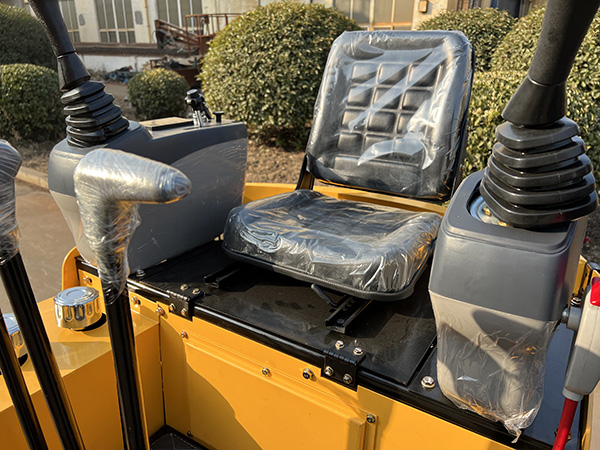

| Pilot operation, dual rotation motor | |
| Four legged ceiling |
The above parameters are subject to change without prior notice! For the latest information or product customization needs, please contact customer service at the following email address: txgx888@gmail.com
