Product details

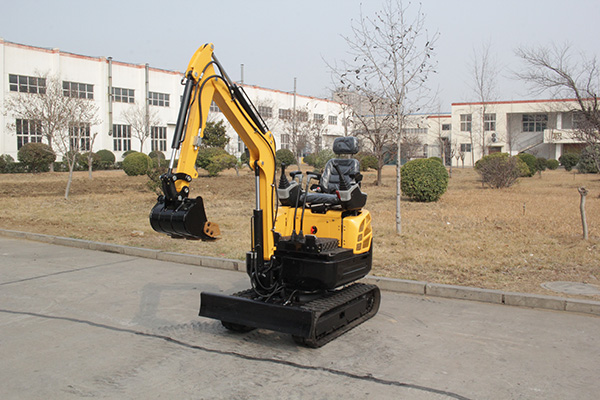

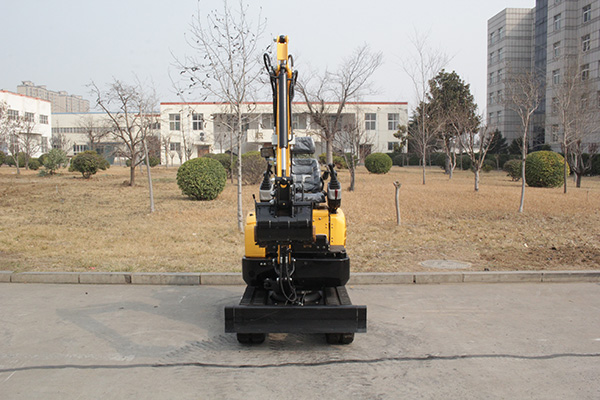

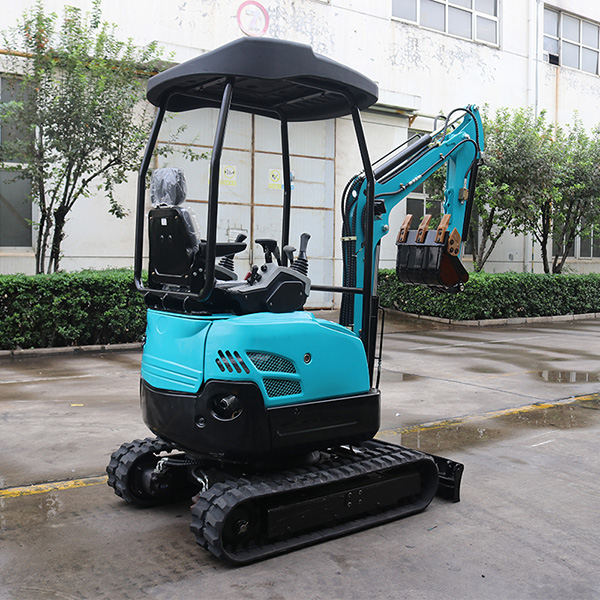

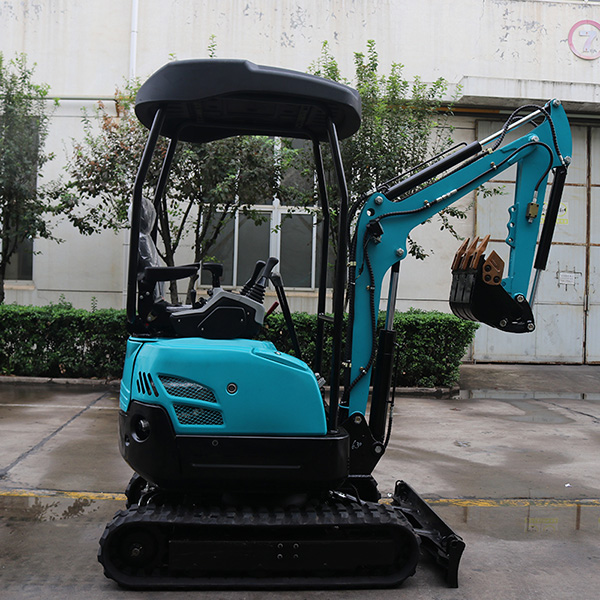

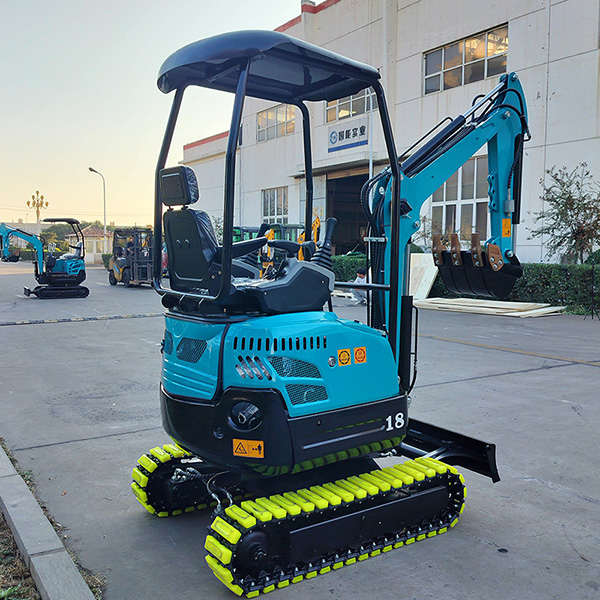

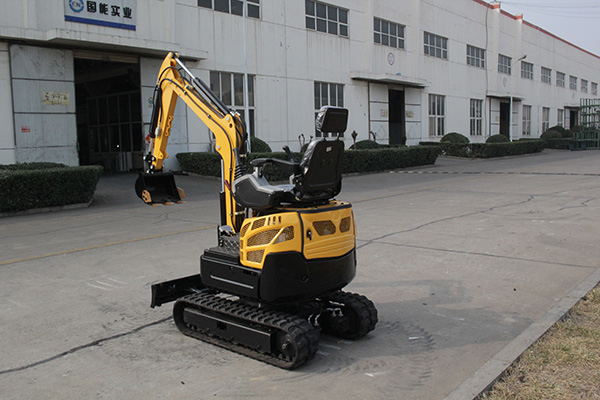

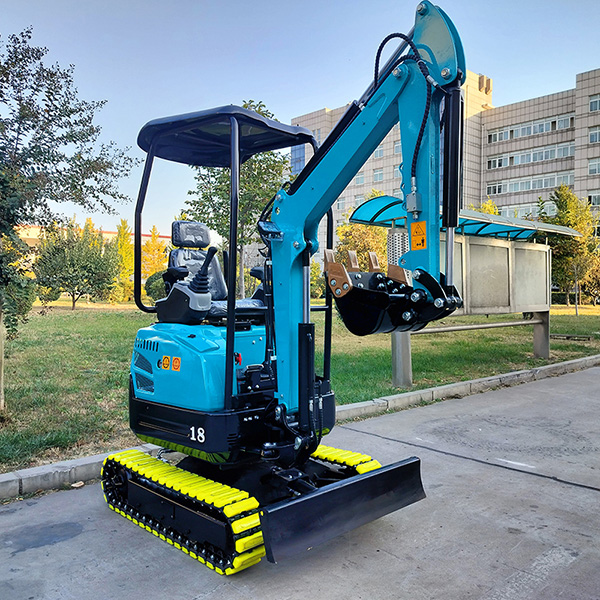

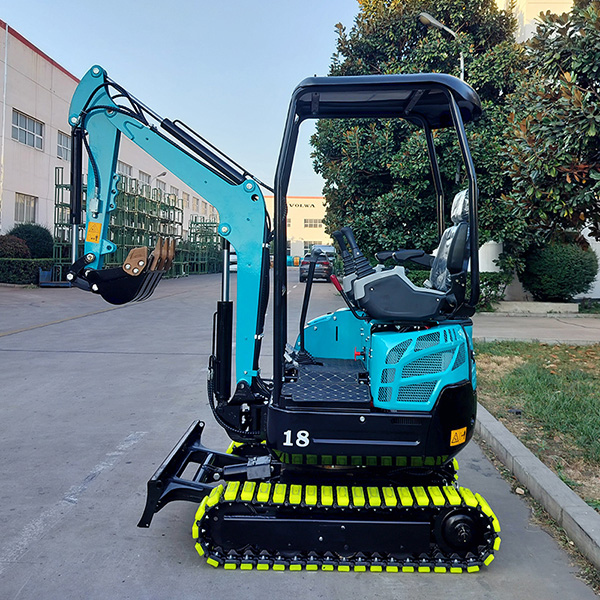

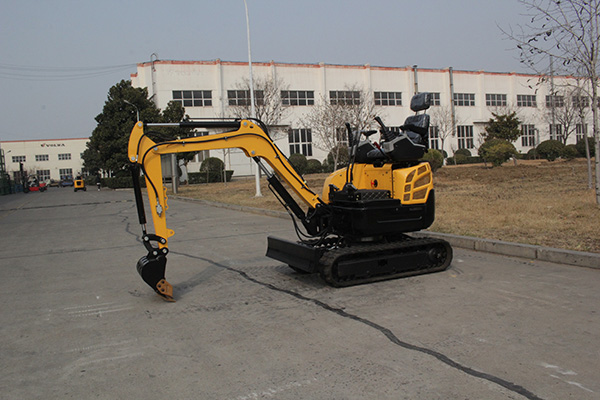

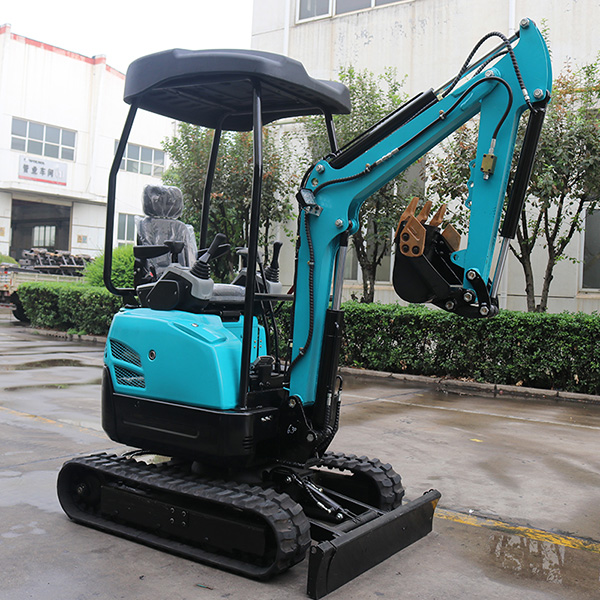

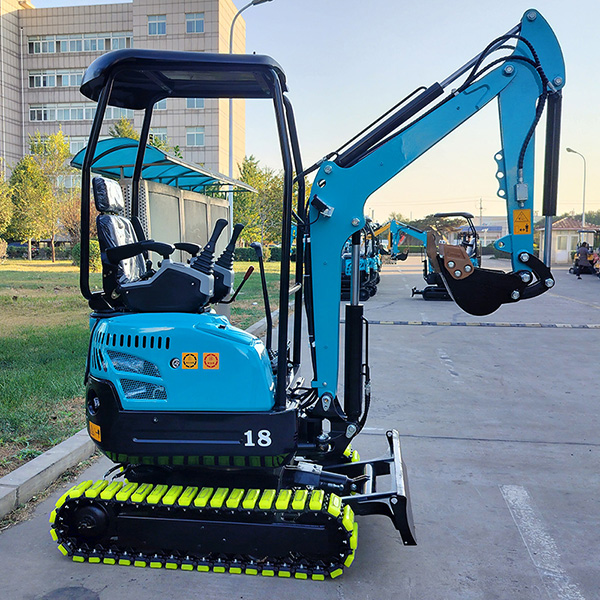

| Model | XG-18 |
| Vehicle weight | 1500kg |
| Overall dimensions | 2200*1160*2200mm |
| track width | 230mm |
| Track grounding length | 1125mm |
| Ground clearance of chassis | 385mm |
| Bucket capacity | 0.025m³ |
| gradability | 40° |
| Fuel tank capacity | 10L |
| Hydraulic oil tank capacity | 12L |
| Hydraulic flow rate | 40L/Min |
| work pressure | 16Mpa |
| engine | jiubaotian D722 |
| engine power | 10.3KW |
| Euro V&EPA4 engines are optional | jiubaotian D722 |
| Maximum excavation height | 2660mm |
| Maximum dumping height | 1900mm |
| Maximum Digging Depth | 1910mm |
| Maximum digging radius | 3280mm |
| radius of rotation | 1636mm |
| configuration | Hydraulic pilot operation |
| Four legged ceiling | |
| Dual rotation motor | |
| Piston pump is load sensitive |
The above parameters are subject to change without prior notice! For the latest information or product customization needs, please contact customer service at the following email address: txgx888@gmail.com
